GR meter schematic

4D SOUNDSCAPE

BOM

BOM pdf

-



Updated GR meter schematic


RV1 = Bourns 3296W 10k

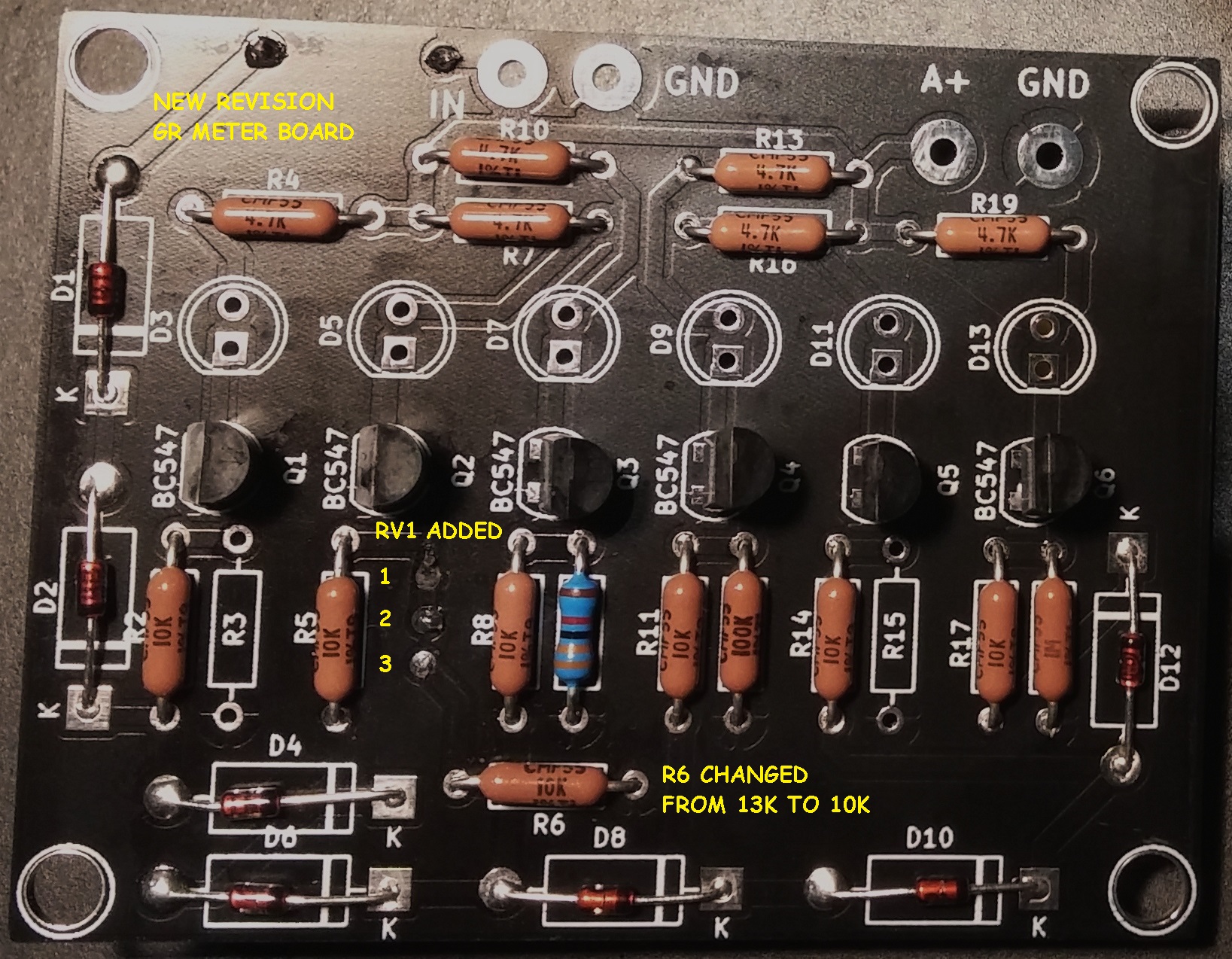

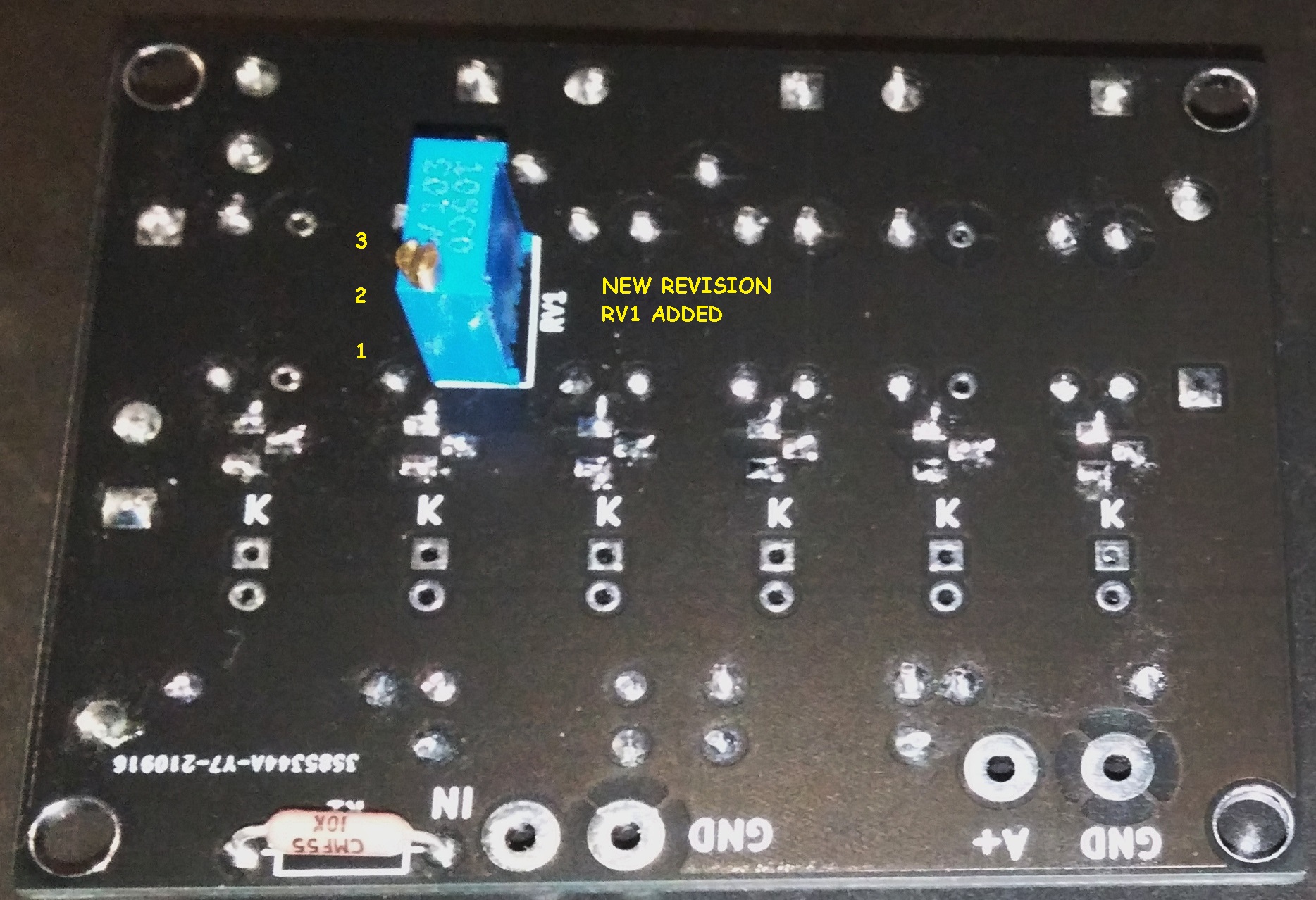

The newest revison of the led board has trimmer RV1 added and R6 has been changed to 10k. These are missing from the BOM!
